How To Install A Garage Door On A Storage Container

Installing a Garage Door on a Shipping Container

Key Takeaways

• Check if your container is in good condition and ready for modification before beginning.
• Careful planning and measuring are important so the garage door fits properly.
• Always wear protective gear for safety during the installation process.
• Check your local regulations to see if permits are needed for container modifications.
• Conexwest’s experts know how to modify a shipping container safely and with precision.

Tools And Materials Required

Tools

1. Circular saw or angle grinder
2. Drill
3. Level
4. Screwdriver or power driver
5. Measuring tape
6. Safety gear (gloves, goggles, hearing protection)
7. Wrenches
8. Saw
9. Hammer
10. Ladder (if needed to reach higher areas)

Materials

1. Garage door kit (includes door panels, tracks, hardware)
2. Framing kit (includes header, side frames, footer)
3. Self-tapping screws or rivets
4. Insulation (optional, for temperature control)
5. Rollers
6. Springs
7. Tension cables
8. Weatherstripping
9. Paint or finish
10. Security hardware (locks, alarm system, optional)

Get a quote

Install A Garage Door On A Storage Container [10 Steps]

1. Preparation

• Inspect the Container: Check if it is in good condition and free from major dents or rust. If yes, clean the interior and exterior thoroughly first.
• Gather Tools and Materials: Assemble all necessary tools and materials mentioned above.

2. Cutting the Opening

• Measure and Mark: Determine the size of the garage door and mark the dimensions on the container.
• Cut the Opening: Use a circular saw or angle grinder to cut out the marked area. Wear safety gear during this process.

3. Reinforce the Opening

• Install a Framing Kit: This is important for maintaining the structural integrity of the container. The framing kit includes:
  1. Header
  2. Side frames
  3. Footer

• Secure the Frame: Use self-tapping screws or rivets to attach the framing kit to the container’s structure. Check that everything is level and properly aligned.

4. Install Insulation (Optional)

• If you want to regulate the temperature inside the container, consider adding insulation around the opening before installing the door.

5. Hanging the Garage Door

• Prepare for Installation: Position the garage door as per manufacturer instructions so that it fits within the newly created opening.
• Attach Tracks: Install vertical and horizontal tracks as per the garage door kit instructions. Secure them firmly to the framing.

6. Install the Garage Door

• Lift and Position: With assistance, lift the garage door into place, aligning it with the tracks.
• Secure Door Panels: Attach each panel of the garage door to its respective track using screws or bolts as specified in your kit.

7. Install Hardware

• Add Rollers and Springs: Install any rollers, springs, and tension cables as per the manufacturer’s guidelines.
• Adjust Tension: If applicable, adjust spring tension for smooth operation of the door.

8. Test Operation

• Open and close the door several times to make sure it operates smoothly without any obstructions.
• Make adjustments as necessary to align tracks or tension springs.

9. Seal Gaps

• Apply weather stripping around the edges of the door frame to prevent water intrusion and improve insulation.

10. Final Touches

• Paint or finish any exposed metal edges to protect against rust.
• Consider adding security features like locks or an alarm system for added protection.

Safety And Maintenance Tips

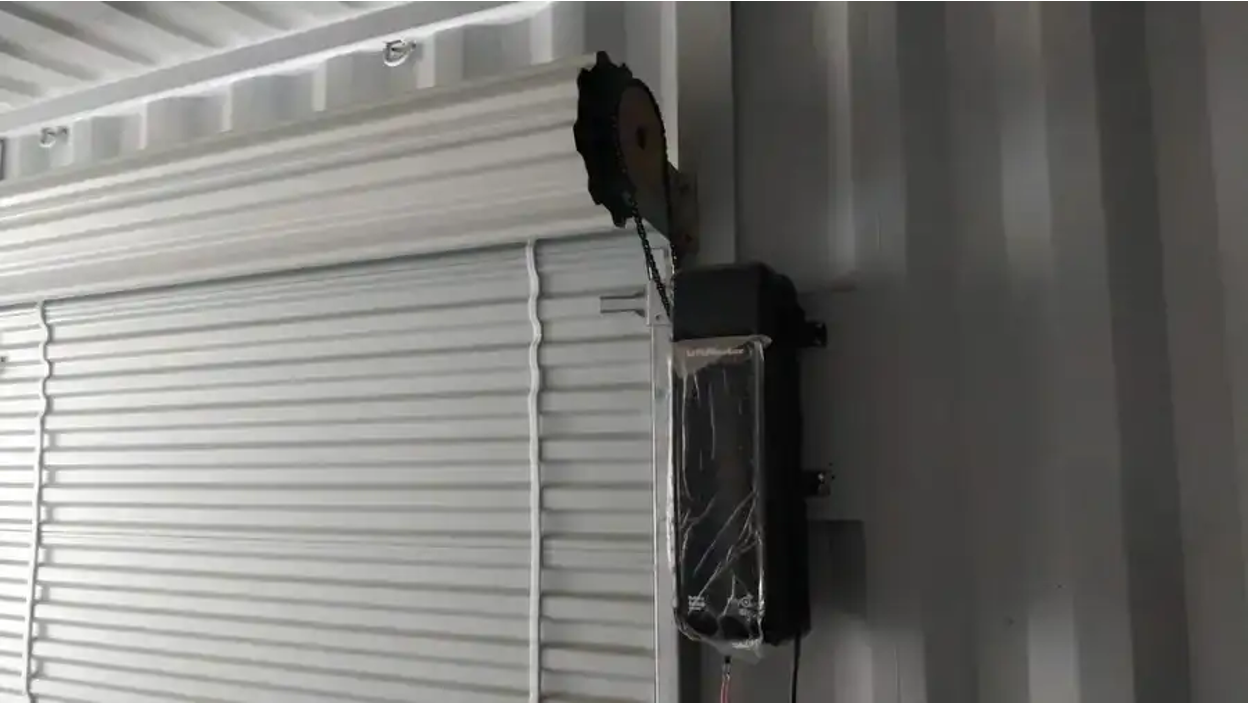

You can add a motor to your roll-up door to operate it without any manual labor.

Safety Tips

1. Regular Inspections: Conduct monthly inspections of the garage door system, including gears, cables, and tracks. Open and close the door multiple times to check for smooth operation and to identify any potential issues early on.
2. Keep Children Away from Controls: Store the garage door opener out of reach of children to prevent accidental operation. Explain the dangers associated with the garage door to help them understand why they should not play near it.
3. Avoid Carbon Monoxide Buildup: Always open the garage door before starting a vehicle inside to maintain proper ventilation and prevent harmful gas buildup from exhaust fumes.
4. Watch for Pinch Points: Be cautious of fingers getting caught in gaps or joints when operating the door manually. Consider using duct tape to cover any sharp edges or gaps temporarily until you can install pinch-resistant features.
5. Never Go Under a Moving Door: Do not attempt to walk under a closing garage door, as this can lead to serious injuries. Always wait for the door to fully open before entering or exiting.
6. Consider Professional Installation: Hiring an expert is an investment that will save you more in the future due to safer and more reliable installation.

Maintenance Tips

1. Lubricate Moving Parts: Regularly lubricate hinges, rollers, and tracks with a silicone-based lubricant for smooth operation and reducing wear over time.
2. Check Spring Tension: Monitor the tension of the garage door springs regularly. If they appear worn or damaged, replace them promptly to avoid accidents during operation.
3. Clean Tracks: Keep the tracks free from debris and dirt, as this can impede movement and cause operational issues.
4. Inspect Weather Stripping: Check weather stripping around the door for signs of wear or damage. Replacing it helps maintain insulation and prevents moisture intrusion.

Why Choose Conexwest To Install A Garage Door On Your Storage Container

Conexwest is your complete solution for all your needs related to shipping containers.

For installing a garage door on your storage container, choosing Conexwest is a decision that can make all the difference. Here’s why you should partner with us for this project:

1. Expertise in Container Modifications

We specialize in shipping container modifications, including garage door installations. Our team has extensive experience and knowledge in working with containers so that every modification is done correctly and safely.

2. Customization Options

We provide a variety of garage door styles, including roll-up doors and barn doors, which are perfect for maximizing space and getting easy access.

3. Comprehensive Service

From the initial consultation to the final installation to delivery, we provide a seamless experience. Our team will guide you through every step of the process so that all your questions are answered and that you are satisfied with the outcome.

Get a quote

Frequently Asked Questions (FAQs)

What types of garage doors can be installed on a shipping container?

You can install various types of garage doors on a shipping container, including roll-up doors, swing-out doors, and barn doors. Roll-up doors are popular as they save space and provide easy access without losing the interior room.

Is insulation necessary for a shipping container garage?

It’s not mandatory but insulation is essential if you plan to use the container as a garage, especially in extreme weather conditions. Insulation helps regulate temperature and prevents condensation inside the container.

Can I install a remote-controlled garage door on my shipping container?

Yes, remote-controlled garage doors are an excellent option for convenience. They can be integrated into your shipping container setup for easy access without leaving your vehicle.

How long does it take to install a garage door on a shipping container?

The installation time can vary based on the type of door and modifications needed but ranges from a few hours to a full day when done by professionals.

Does Conexwest provide a warranty for modified containers?

Yes, we provide a warranty coverage period of 10 years for new ISO shipping containers and 5 years for used cargo-worthy ISO shipping containers. This warranty covers defects due to improper material or workmanship under normal use and maintenance.
