Man Door Accessories Single Bore 36 in.
This man-door accessory kit was designed to complete your shipping container’s 36" x 80" single-bore Cor-weld door. Made for both functionality and security, this kit includes everything that you’ll need to upgrade your container’s entryway. With a lever lockset, door shoe, gasket, and threshold, you're guaranteed a secure and weatherproof container entrance. Installation is easy and hassle-free requiring minimal time, effort, or special tools.
Benefits:
All necessary components for finishing your single bore door.
Provides a secure, comfortable, and weatherproof entryway.
A simple setup saves time and ensures a proper fit.
Conexwest approved - we use this accessory kit on our own container doors.
Order Information
Order now and enjoy lightning-fast delivery within the United States. We're also available to answer any questions you may have about this product at (855) 878-5233.
Discounted bulk orders are available. No minimum order is required.
ANSI Standards Meets or exceeds of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

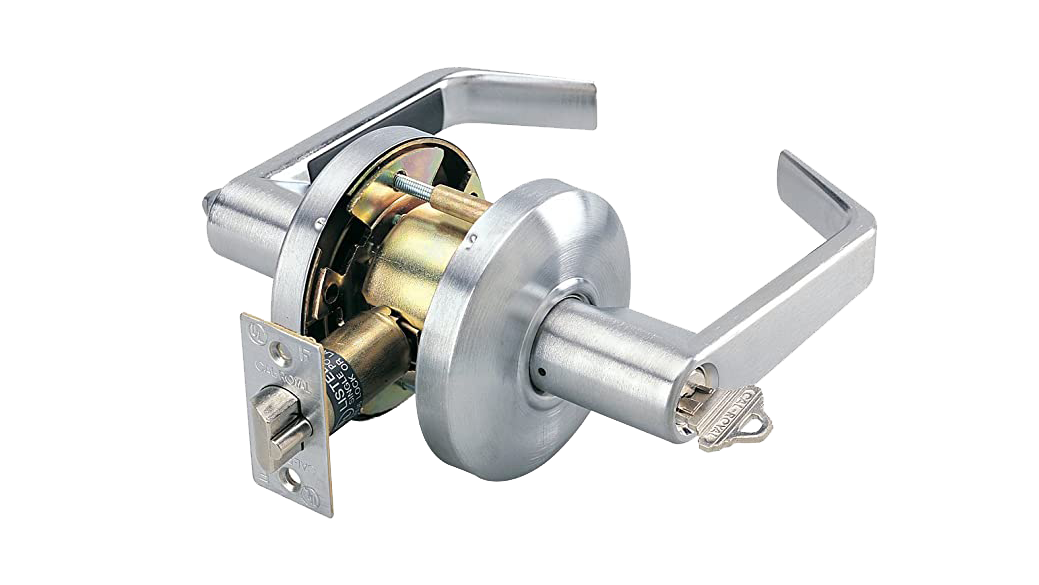

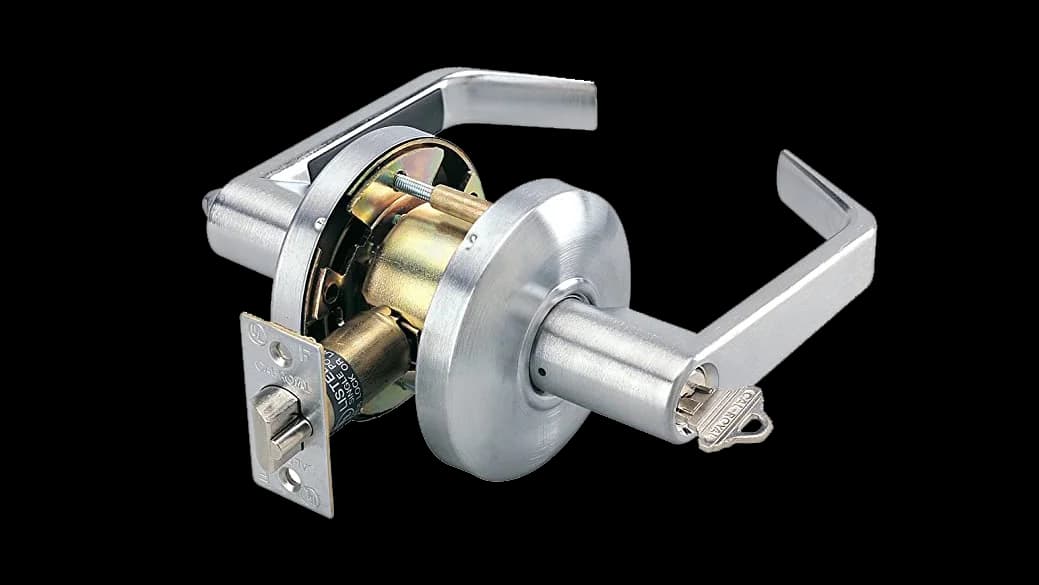

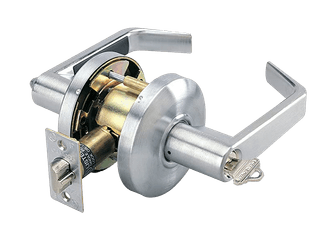

Specifications:
- Make your door look more modern and easier to use by swapping out your doorknob for a lever.
- Door Range 1-3/8 in. to 1-3/4 in. thickness doors.
- Backset 2-3/4 in. Standard, 2-3/8 in., 3-3/4 in.
- Front 2-1/4 in. x 1-1/8 in., adjustable for flat or beveled doors 1/8 in. in 2 in.
- Strike ASA strike standard. "T" and full lip strike available on request.
- Latchbolt 1/2 in. Throw solid brass, reversible for RH or LH applications. UL listed.
- Latch and Stick Screws 8-32 X 1 in. FPH dual purpose.
- Exposed Trim Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
- Keying 6-pin "C" keyway cylinder, 2 keys per lock.
- Cylinders & Keyways 6 pin solid brass "C" keyway standard
- SL00 US26D
Protect your container against dust, drafts, light, smoke, and fire by adding this door shoe.
Specifications:
- Protect your container home or office against dust, drafts, light, smoke, and fire.
- Width -1 1/4 in. (31.8mm)
- Profile Height -1 5/16 in. (33.3mm)
- Total Height with Insert - Approx. 1 7/8 in. (47.6mm)
- DSR-408
Seals the gaps around the top & two sides of a door. It contains (1) Jamb Header piece and (2) Hinge & Strike Jamb pieces of weatherstrip.
Specifications:
- Width: 1/4 in. (6.4mm)
- Profile Height: 7/8 in. (22.2mm)
- Total Height: 1 1/8 in. (28.6mm)
- PG-603
Thresholds help prevent air flow beneath a door and can save you energy costs.
Specifications:
- Height:1/ 2 in. (12.7mm)
- Width: 6 in. (152.4mm)
- CCR2726
